: +91 9831532055Situated at Howrah Kolkata West Bengal India Mana Enterprise is Manufacturers and Suppliers of Conveyor System suh as Flap Gate,Belt Conveyor System,Bucket Elevator System, Screw Conveyor, Rack and Pinion Gate etc.

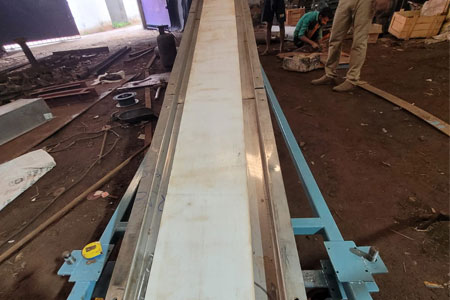

Situated at Howrah Kolkata West Bengal India Mana Enterprise is Manufacturers and Suppliers of Belt Conveyor in which a flat belt rotates over the pulleys. They are used as a medium to transport cartoons and bulk materials of small sizes at various places such as warehouses, general stores, airports to carry luggage etc. A Flat Belt Conveyor that we manufacture is a minimum of 100mm and can be a maximum of 2 meters in width size. The length or the range of a Flat Belt Conveyor can be up to 300 meters. The speed of a Flat Belt Conveyor can vary from 1m/minute to 200m/minute. There are three types of Flat Belt Conveyors build by us namely Inclined Belt Conveyors, Curved Belt Conveyors and Straight Belt Conveyors.
Features:
1). Supreme finishing
2). Thrifty prices
3). Superior quality

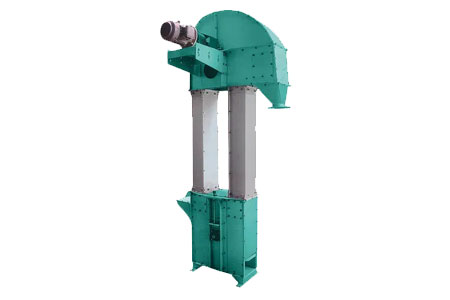

Situated at Howrah Kolkata West Bengal India Mana Enterprise is manufacturer and exporter of different types of Bucket Elevators.
Bucket elevators are designed to move flowing powders or bulk solids vertically. The typical elevator consists of a series of buckets mounted on a chain or belt operating over a sprocket or pulley. Take-ups are provided as a means to compensate for variations in length of chain or belt due to temperature changes, atmospheric conditions, or wear. A steel casing encloses the bucket line. Head sections and boot sections house integral transmission components.
Material is fed into an inlet hopper. Buckets (or cups) dig into the Material, and convey it up to and over the head sprocket/pulley, then throwing the material out the discharge throat. The emptied buckets then continue back down to the boot to continue the cycle.

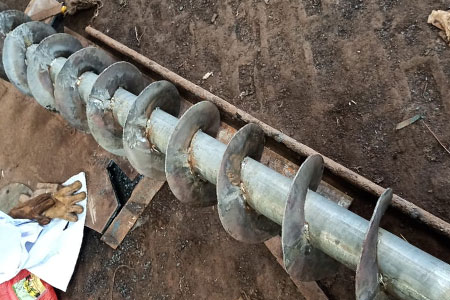

Situated at Howrah Kolkata West Bengal India Mana Enterprise is Manufacturers and Suppliers of Screw Conveyor.Screw Conveyors are used to convey material from one place to another place by means Rotating Screw type Auger. Material can be carried either horizontally or vertically or at required angle.
It consists of a Screw Auger Rotating in a pipe for vertical lifting or in a U-shaped trough for horizontal conveying.
The Screw Auger can be provided with dumping hopper for intake of materials. Discharge may be directly to storage bin or further equipments.
Screw blades are made from high capacity press. These blades have precise dimensions and made up by heavy 5 mm MS sheet depending upon the material being carried.
These blades have high wear and tear resistance to cope with different sorts of materials.
Cleaning doors are provided at proper locations for cleaning of screw auger

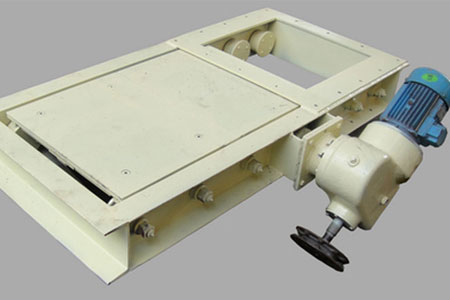

Situated at Howrah Kolkata West Bengal India Mana Enterprise is leading manufacturer, supplier and exporter of Rack And Pinion Gates in India. We provide Rack And Pinion Gates in order to fulfill the need of industries. We provide these RACK AND PINION GATES at much competitive rates in the market.
Features:
1). Supreme finishing
2). Thrifty prices
3). Superior quality
Situated at Howrah Kolkata West Bengal India Mana Enterprise is Manufacturers and Suppliers of Flap Gate.Flap gates are equipped with flat back seats for attaching to wall thimbles, new concrete headwalls, existing walls or pipe flanges. The seat or frame of the flap gate is attached to a wall or pipe flange and forms the opening through which water passes.

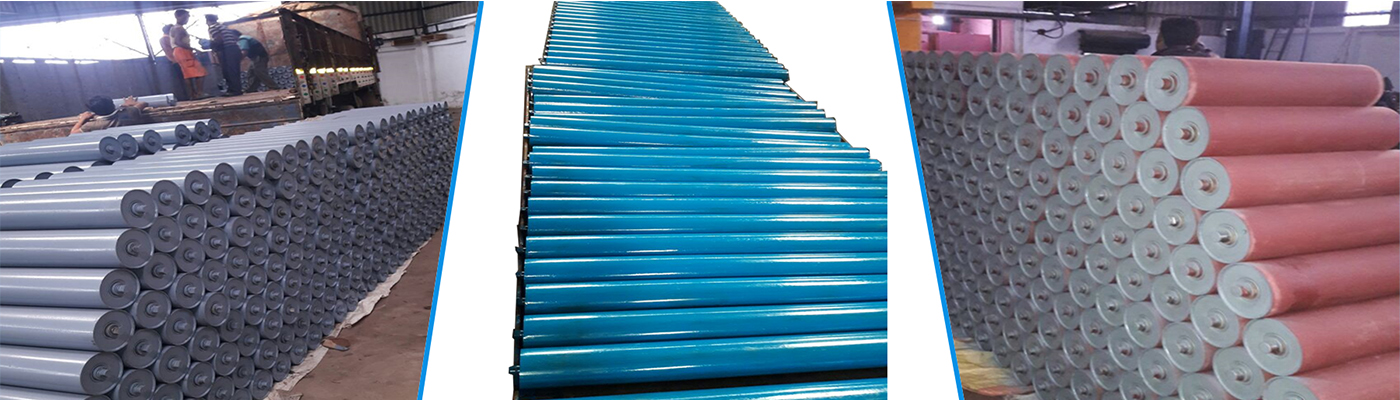

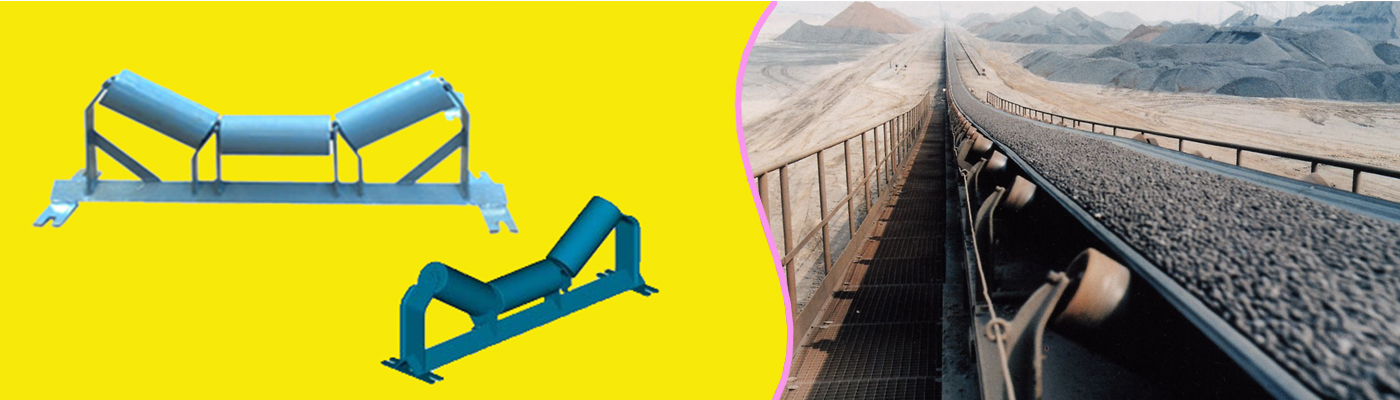

Situated at Howrah, West Bengal, India, Mana Enterprise are occupied with manufacturing and supplying a quality extent of Conveyor such as Conveyor Frame Conveyor Idler Roller,All Types of Pulley (Dry Pulley, Tail Pulley and Snab Pulley) and Material Handling System and many more products
MANA ENTERPRISE
Contact Person : Manik Mondal (Proprietor)
Office : Sahanpur Dasnagar Howrah, West Bengal, India
Unit-1 : Sadananda Industrial Estate ,Baltikuri , Howrah West Bengal, India
Unit-2: Sraswati complex, Ankurhati, Domjur Howrah West Bengal, India
Mobile : +91 9831532055
Email : manaenterprise@yahoo.com/enterprise_mana@yahoo.com
